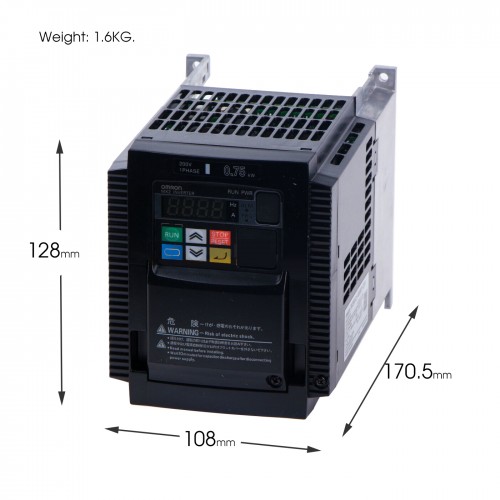

(Unit: mm)

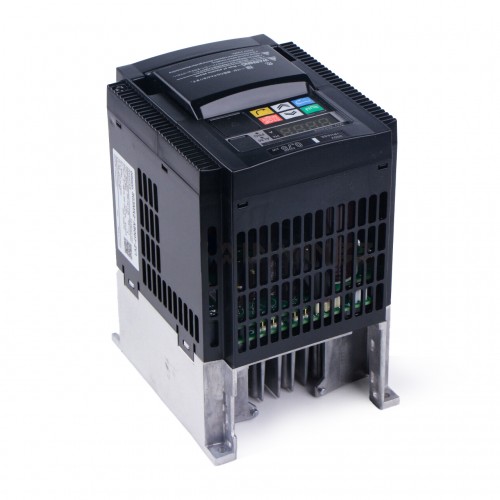

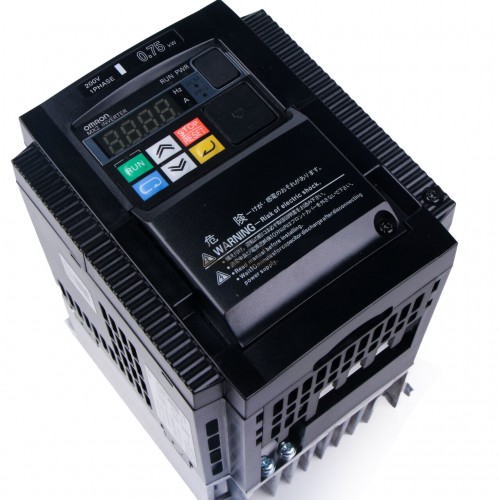

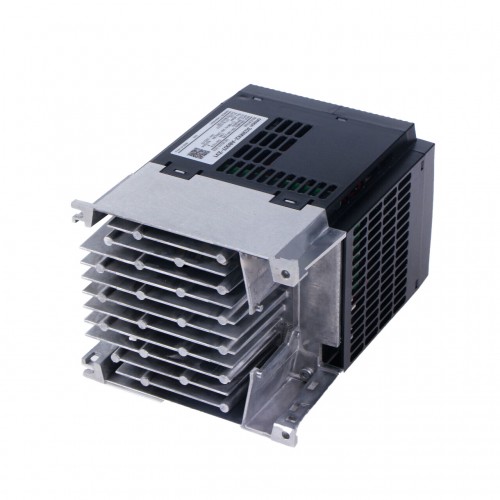

3G3MX2-AB007-V1
3G3MX2-AB015-V1
3G3MX2-AB022-V1
3G3MX2-A2015-V1
3G3MX2-A2022-V1
3G3MX2-A4004-V1
3G3MX2-A4007-V1
3G3MX2-A4015-V1
3G3MX2-A4022-V1
3G3MX2-A4030-V1
| Inverter | DC reactor specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Voltage class | Max. applicable motor capacity (kW) | Model | Heavy load: CT, Light load: VT mode | Max. appli-cable motor capacity (kW) | Rated input current (A) | Model | Induc-tance (mH) | Heat gene-ration (W) | Operating ambient temperature/ humidity | Location |
| Single- phase 200-V Class | 0.1 | 3G3MX2- AB001-V1 | Heavy load | 0.1 | 1.3 | 3G3AX- AL2025 | 2.8 | 12 | -10 to 50°C 20% to 90% | At an altitude of 1,000 m max.; indoors (without corrosive gases or dust) |
| Light load | 0.2 | 2.0 | ||||||||
| 0.2 | 3G3MX2- AB002-V1 | Heavy load | 0.2 | 3.0 | ||||||
| Light load | 0.4 | 3.6 | ||||||||
| 0.4 | 3G3MX2- AB004-V1 | Heavy load | 0.4 | 6.3 | ||||||
| Light load | 0.55 | 7.3 | ||||||||
| 0.75 | 3G3MX2- AB007-V1 | Heavy load | 0.75 | 11.5 | 3G3AX- AL2055 | 0.88 | 25 | |||
| Light load | 1.1 | 13.8 | ||||||||
| 1.5 | 3G3MX2- AB015-V1 | Heavy load | 1.5 | 16.8 | ||||||
| Light load | 2.2 | 20.2 | 3G3AX- AL2110 | 0.35 | 50 | |||||
| 2.2 | 3G3MX2- AB022-V1 | Heavy load | 2.2 | 22.0 | ||||||
| Light load | 3.0 | 24.0 | ||||||||
