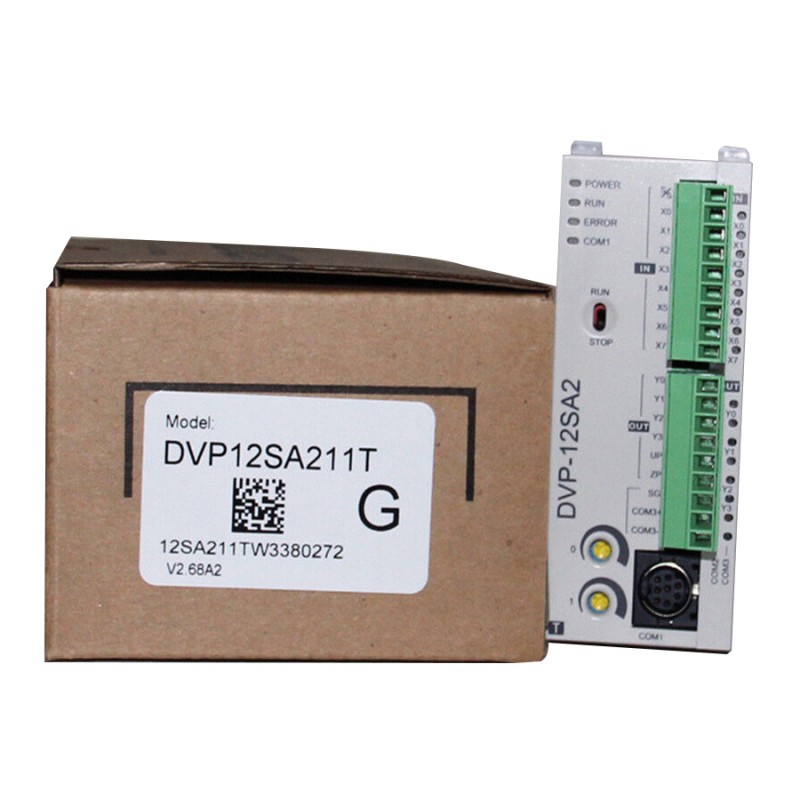

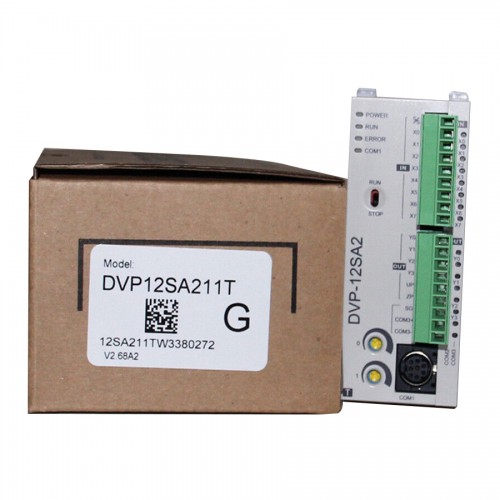

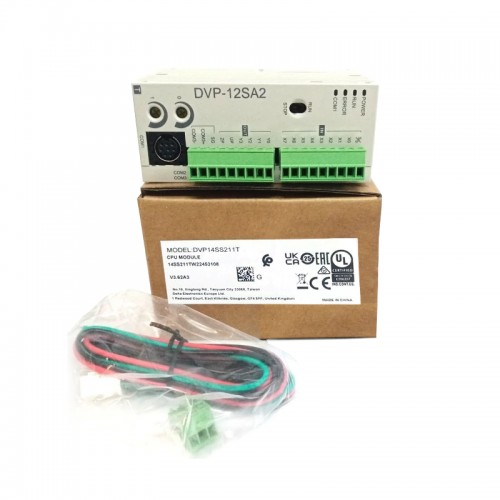

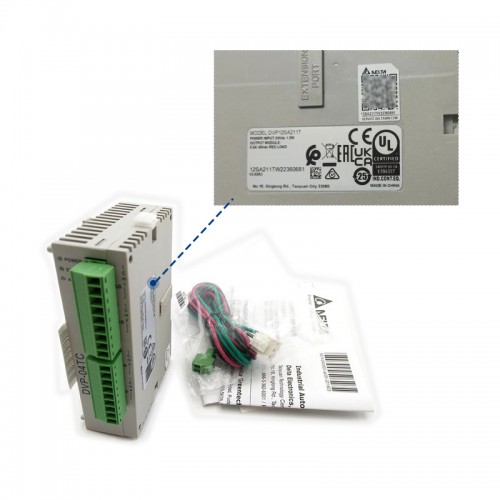

DVP12SA211T

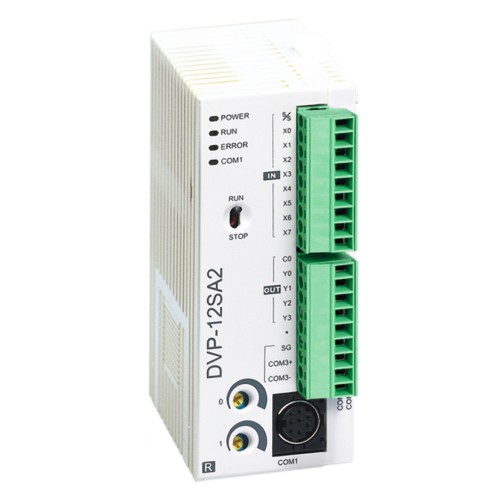

Delta DVP-SA2. DVP-SA2 is a 12-point (8DI + 4DO) PLC MPU,
offering various instructions and with 16k steps program memory, able to connect to all DVP-S series extension modules and high-speed extension modules, including digital I/O (max. 480 I/O points) and analog modules (for A/D, D/A conversion and temperature measurement).

2 points of 100 kHz and 2 points of 10 kHz high-speed pulse output satisfy all kinds of applications.

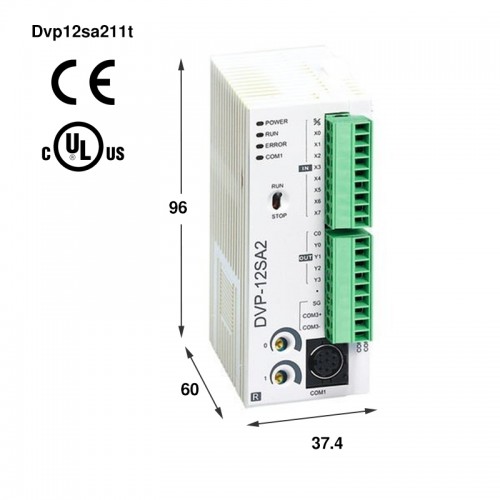

DVP-SA2 is small in size and easy to install.

Users do not have to install any batteries in DVP-SA2 series PLCs.

The PLC programs and the latched data are stored in the high-speed flash memories.
Specifications

MPU points: 12 (8DI + 4DO)

Max. I/O points: 492 (12 + 480)

Program capacity: 16k steps

COM port: Built-in RS-232 & 2 RS-485 ports, compatible with Modbus ASCII/RTU protocol.

Can be master or slave.

High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.

Extendable to Max. 8 Modules: DVP-SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules and single-axis motion control functions.

Power supply voltage24 VDC (-15 to 20%) (with counter-connection protection on the polarity of DC input power)

DVPPS01/PS02: input 100 to 240 VAC, output 24 VDC/1A (PS02: 2A)

Connector

European standard removable terminal block (Pin pitch: 3.5mm)

Operation

Maximum power loss time is 10ms or less.

Inrush current

Max. 7.5 A@24 VDC, I2t = 0.25 A2S

Fuse capacity

2.5 A/30 VDC, Polyswitch

Power consumption 1.8W 1.5W

Power protection With counter-connection protection on the polarity of DC input power

Insulation resistance Noise immunity

ESD (IEC 61131-2, IEC 61000-4-2): 8kV Air Discharge

EFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2kV, Digital I/O: 1kV,

Analog & Communication I/O: 1kV

RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m

Grounding

The diameter of grounding wire cannot be smaller than the wire

diameter of terminals L and N (All DVP units should be grounded

directly to the ground pole).

Operation / storage

Operation: 0 to 55°C (temp.), 50 to 95% (humidity), Pollution degree 2

Storage: -25 to 70°C (temp.), 5 to 95% (humidity)

Vibration / shock resistance

International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC 68-2-27 (TEST Ea)

Shipping weight: 1.1 kg
