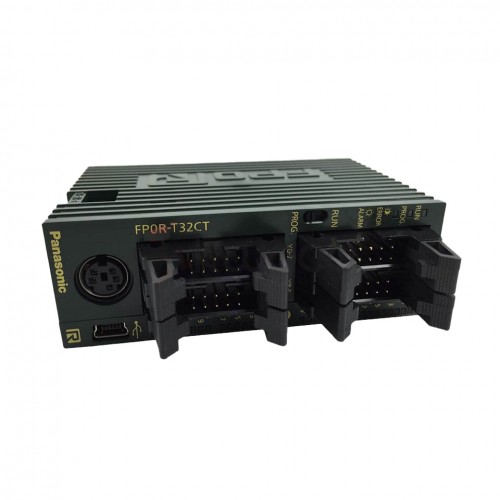

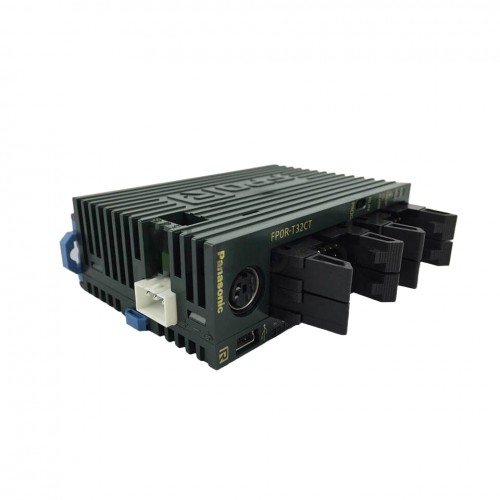

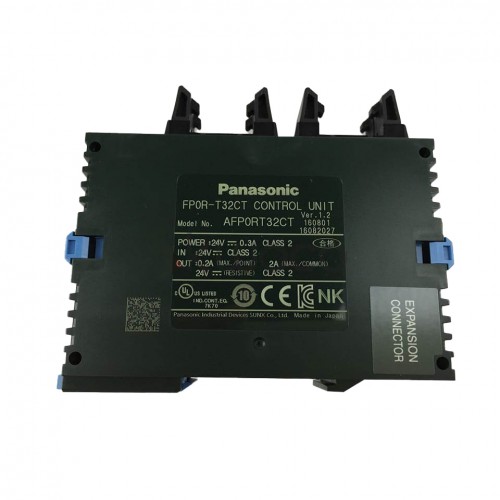

FP0R-T32CT Programmable Controller
FP0R-T32CT Programmable Controller
FP0R-T32CT Programmable Controller
FP0R-T32CT Programmable Controller
FP0R-T32CT Programmable Controller
FP0R-T32CT Programmable Controller
FP0R-T32CT Programmable Controller

FP0R-T32CT

FP0R-T32CT Programmable Controller

Brand: Panasonic
Availability: In Stock
Request A Quote
Request A Quote
Email Us

Features

32 points (input:16, transistor output:16)

Products we have in stock

AFPORC32T(FPOR-C32T),AFPORC16CT(FPOR-C16CT),AFPORC32CT(FPOR-C32CT),AFPORT32MT(FPOR-T32MT),AFPORT32CT(FPOR-T32CT),AFPORC32MT(FPOR-C32MT),AFPORC16MT(FPOR-C16MT),

Share This

Product Datasheet

FP0R-T32CT (2.42MB)
FUNCTIONSPARAMETERS
Brand NamePanasonic
Model NumberFP0R-T32CT (Transistor output type only)
Programming method/control methodRelay symbol/ cyclic operation
Number of I/O points32 points (input:16, transistor output:16)
Program memoryEEPROM (no backup battery required)
Program capacity32 K steps
Master control relay points (MCR)256 words
Number of labels (JMP and LOOP)256 labels
Differential pointsequivalent to the program capacity
Number of step ladder

1000 stages

Features:

1.Large capacity program / data memory
Program capacity: 32 k steps max.
Data register: 32 k words max.

2.Ultra-high speed processing
80 ns/step (ST instruction)
Within a range of 0 to 3,000 program steps

3.USB tool port provided as standard equipment
Capable of high-speed program transfer with USB 2.0

4.Multi-axis control available without expansion units
Built-in pulse outputs for four axes (50 kHz max. each)

5.Battery-less automatic backup of all data
The F type has a built-in FeRAM, that allows the automatic saving of all data without a backup battery.

6.Makeover for FP0R analog units. Greatly improved performance, extended functions
Higher resolution: 14 bits (previously 12 bits)
Up to 8-channel input: Easier transition to multi-channel systems.
