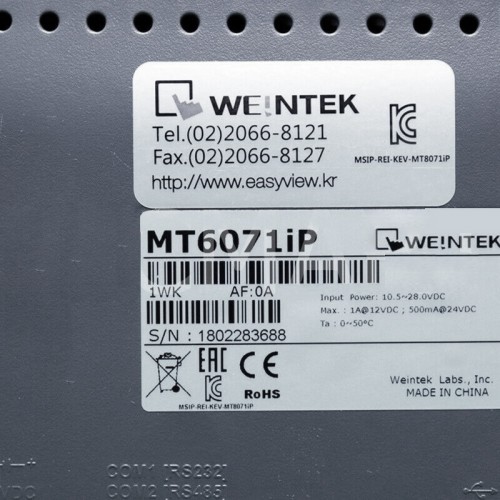

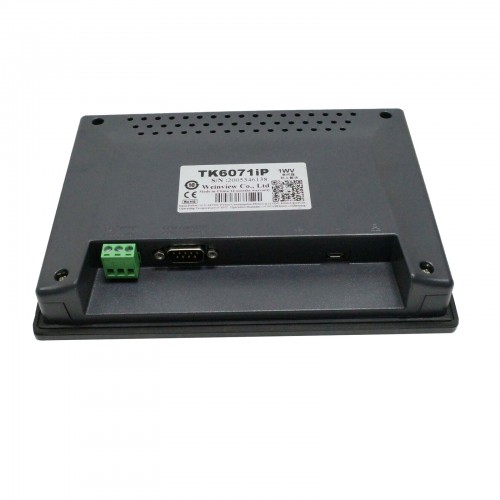

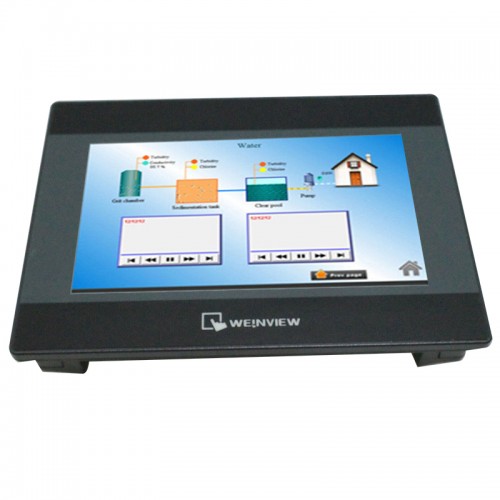

MT6071IP
Original Weintek Weinview MT6071IP E view Capacitive Touch Panel Hmi Screen
Request A Quote
Features

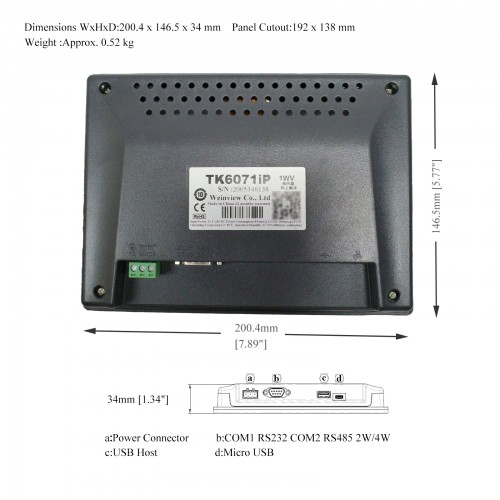

7” TFT LCD ,800 x 480 ,LED ,Colors :16M ,128 MB ,USB 2.0 x 1 (Micro USB) ,COM1: RS-232, COM2: RS-485 2W/4W ,Dimensions WxHxD:200.4 x 146.5 x 34 mm
Products we have in stock
TK6071iP,MT8102iE,MT8121iE,MT8071iP,MT8051iP,MT6103iP,TK6070iP,MT8101iE,MT8071iE,MT6070iH
Product Datasheet
MT6071IP (323.88KB)|
Display |
Display |
7” TFT LCD |
|
Resolution |
800 x 480 |
|
|
Brightness (cd/m2) |
300 |
|
|
Contrast Ratio |
500:1 |
|
|
Backlight Type |
LED |
|
|
Backlight Life Time |
>30,000 hrs. |
|
|
Colors |
16M |
|
|
LCD Viewing
Angle (T/B/L/R) |
70/50/70/70 |
|
|
Touch Panel |
Type |
4-wire Resistive Type |
|
Accuracy |
Active Area Length(X)±2%, Width(Y)±2% |
|
|
Memory |
Flash |
128 MB |
|
RAM |
128 MB |
|
|
Processor |
|
32 Bits RISC Cortex-A8 600MHz |
|
I/O Port |
USB
Host |
USB 2.0
x 1 |
|
USB
Client |
USB 2.0 x
1 (Micro USB) |
|
|
Ethernet |
N/A |
|
|
COM
Port |
COM1: RS-232, COM2: RS-485 2W/4W |
|
|
RS-485 Dual Isolation |
N/A |
|
|
RTC |
|
Built-in |
|
Power |
Input Power |
24±20% VDC |
|
Power Consumption |
500mA@24VDC |
|
|
Power Isolator |
Built-in |
|
|
Voltage Resistance |
500VAC (1 min.) |
|
|
Isolation Resistance |
Exceed 50MΩ at 500VDC |
|
|
Vibration Endurance |
10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
|
|
Specification |
PCB
Coating |
N/A |
